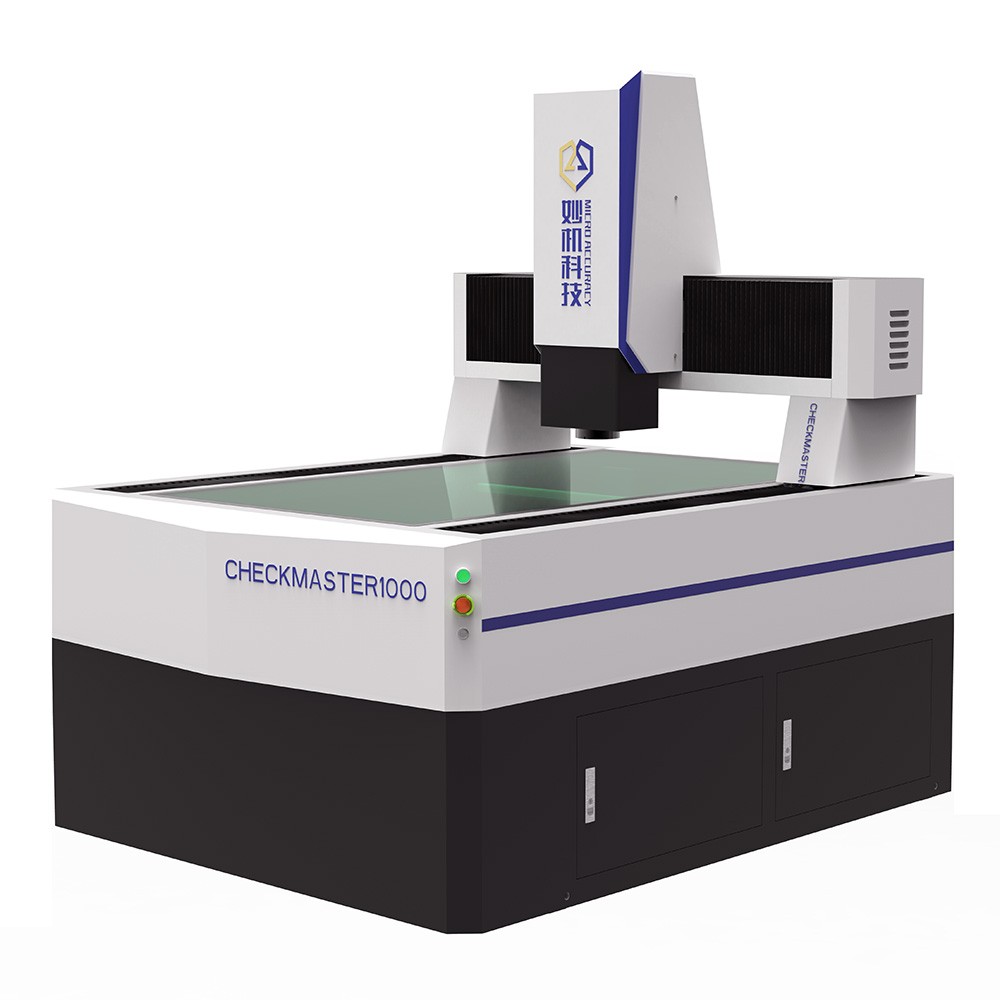

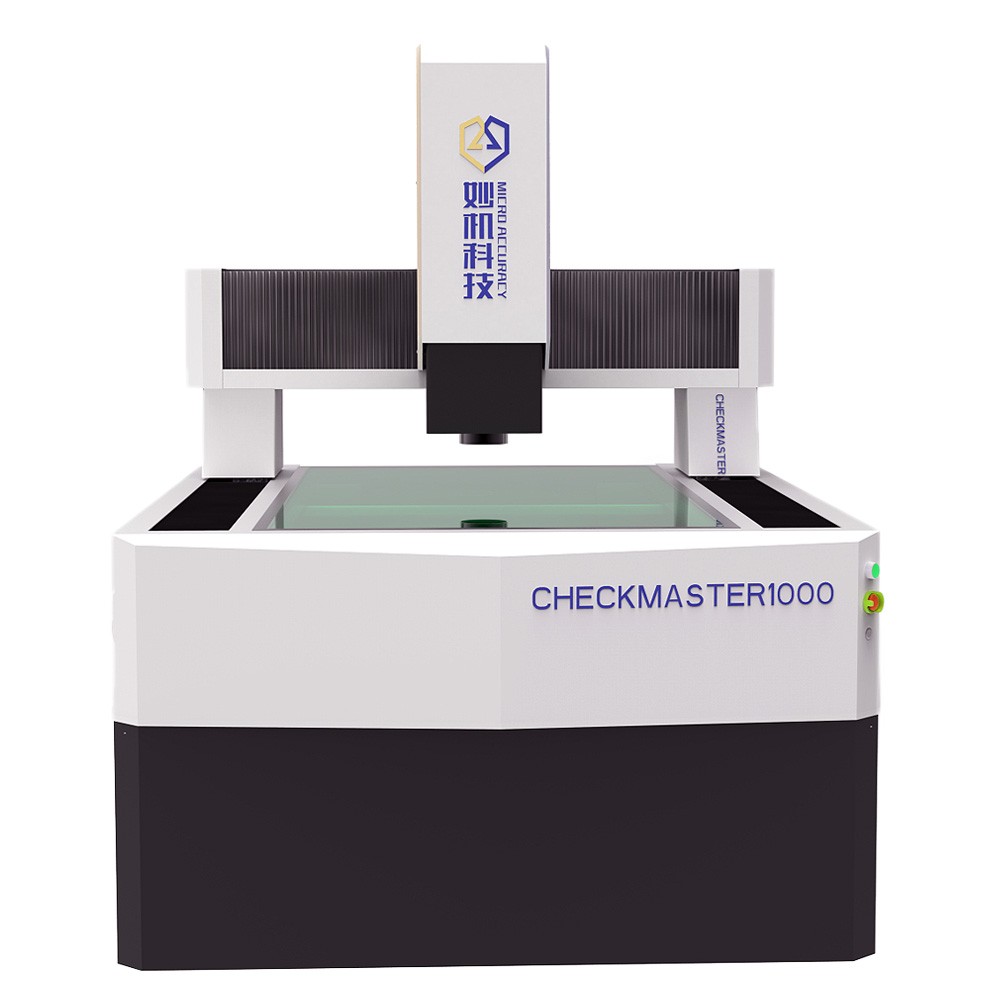

Micro Accuracy Video Measuring Machine Checkmaster Series

Details

Video Measuring Machine SPC Series

Features:

High-precision marble base and column to ensure high stability and rigidity

- THK/HIWIN high precision linear guide and TBI grinding grade ball screw
- Panasonic full-closed-loop servo motor, speed can be adjusted
- RSF high precision non-contact grating scale with resolution 0.0005mm
- Programmable 5-ring 8-zone annular surface light to meet different angle lighting requirements
- Fully automatic zoom lens, no need re-calibrate when changing magnification, save calibration time and avoid human error
- Optional Renishaw contact probe for height, depth and other 3D measurement
- Optional THK linear guide and ball screw
- Optional KEYENCE laser displacement sensor for roughness, flatness surface measurement
- Optional spectral confocal sensor for measuring small and sensitive surfaces

Specification:

Model		Checkmaster 600	Checkmaster 800	Checkmaster 1000	Checkmaster 1200	Checkmaster 1800	Checkmaster 1500	Checkmaster 2000	Checkmaster 2500
XY axis travel (mm)		500x600	800x600	1000x800	1000x1200	800x1800	1200x1500	1500x2000	1500x2500
Measuring accuracy (μm), L=mm		2.0+L/200			2.5+L/200	2.8+L/200	3.0+L/200	3.5+L/200	4.0+L/200
Z axis travel (mm)		200/300(Support customization）
XYZ axis resolution		Heidenhain RSF 0.5μm scale
Drive method		CNC
Camera		1/1.8 Gigabit Color CCD camera
Detent zoom lens		0.7X ~ 4.5X
Video magnification		30X~200X
Working distance		90mm
Measuring software		CNC 2D Microcheck Software
Best accuracy guaranteed temperature range		20℃ ± 2
Illumination	Transmitted	LED programmable 5 ring 8 zones light
	Contour	LED traceable parallel contour light
Power supply		AC100~240V 50/60Hz

Standard Delivery:

Main body	Joystick
Controller	3 axis Panasonic serve motor
2D CNC measuring software	Dell Computer with English language operation system
Auto zoom lens 0.7X-4.5X	Accuracy report
1/1.8 Gigabit Color CCD camera	English language user manual

Optional Accessories:

0.5X , 2X additional lens	Spectral confocal sensor for measuring small and sensitive surfaces
Renishaw contact probe for height, depth and other 3D measurement	Standard scale
KEYENCE Laser displacement sensor for roughness, flatness surface measurement
