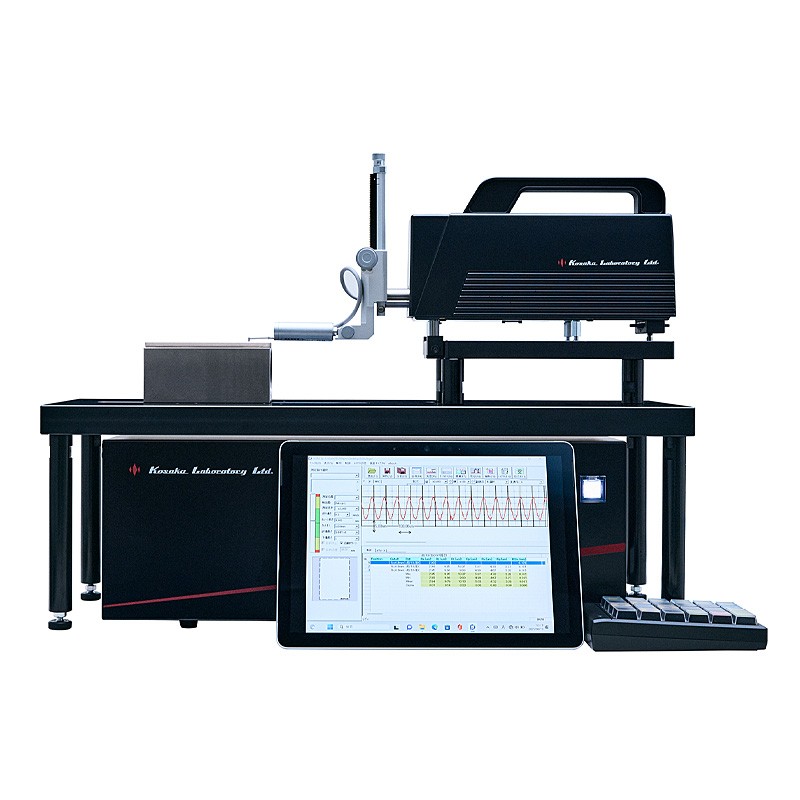

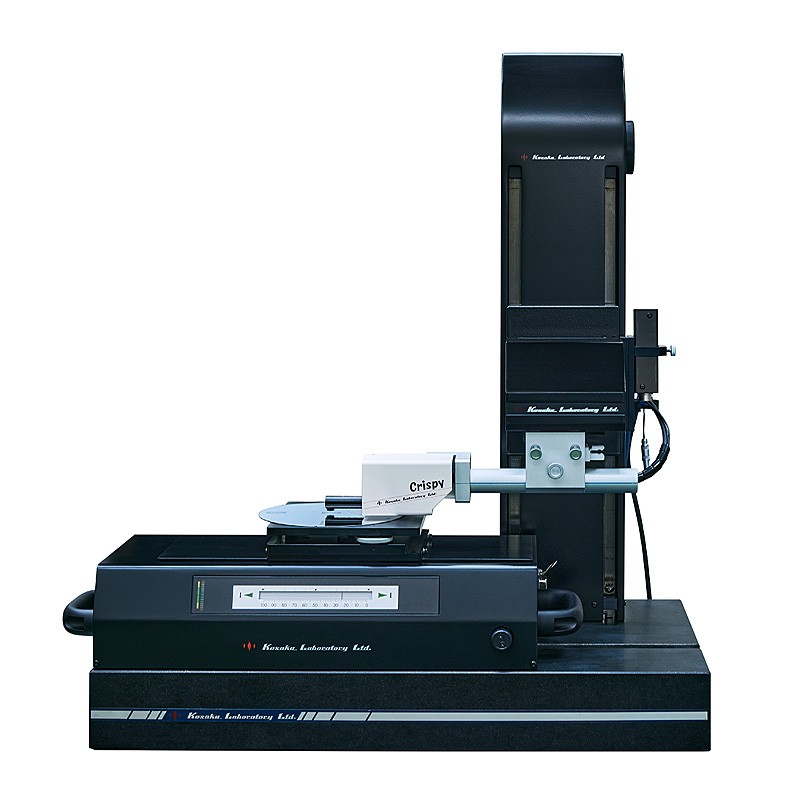

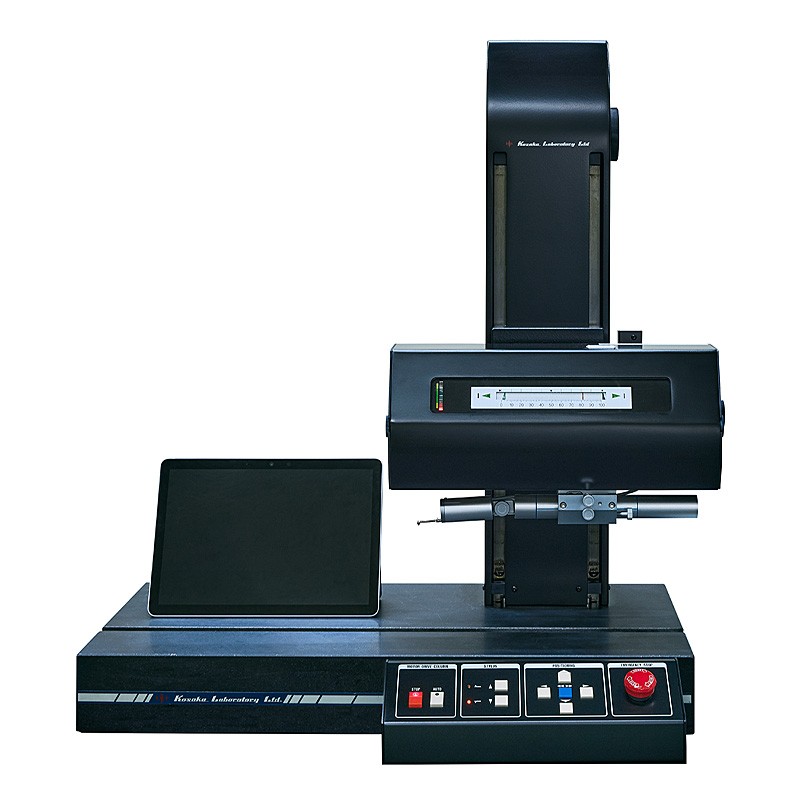

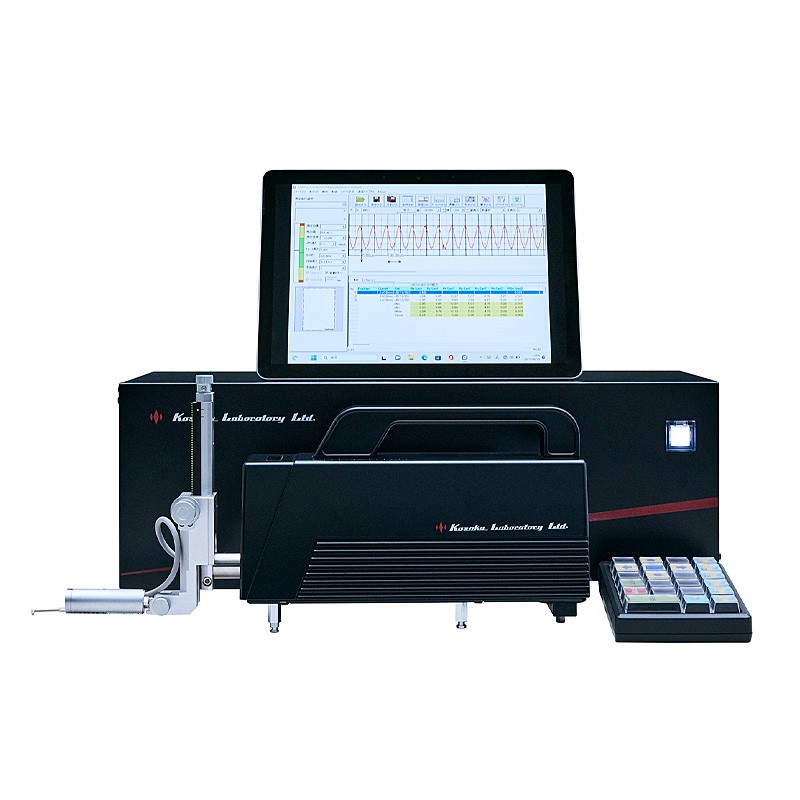

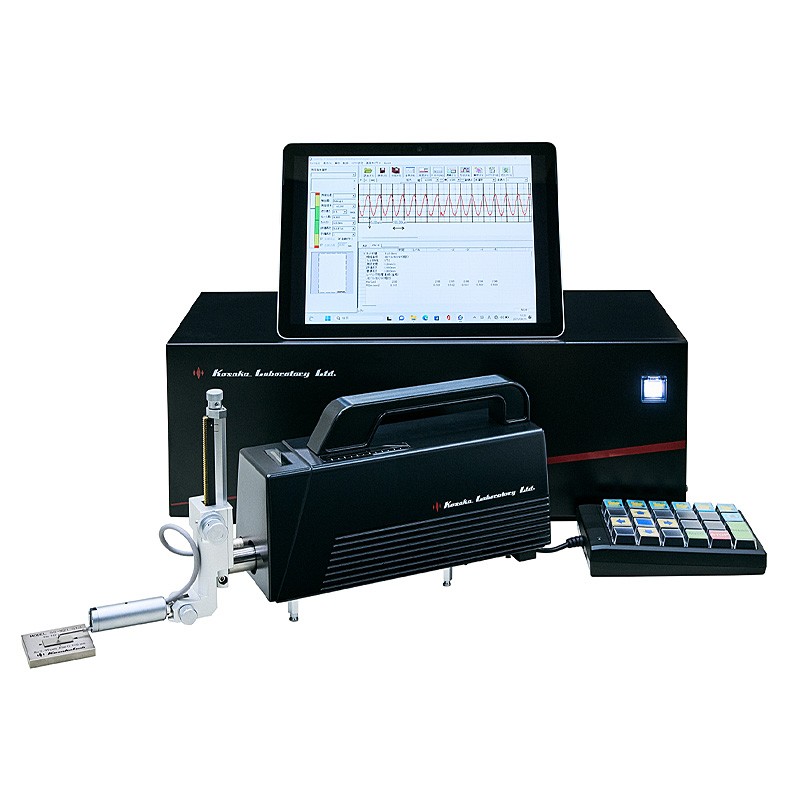

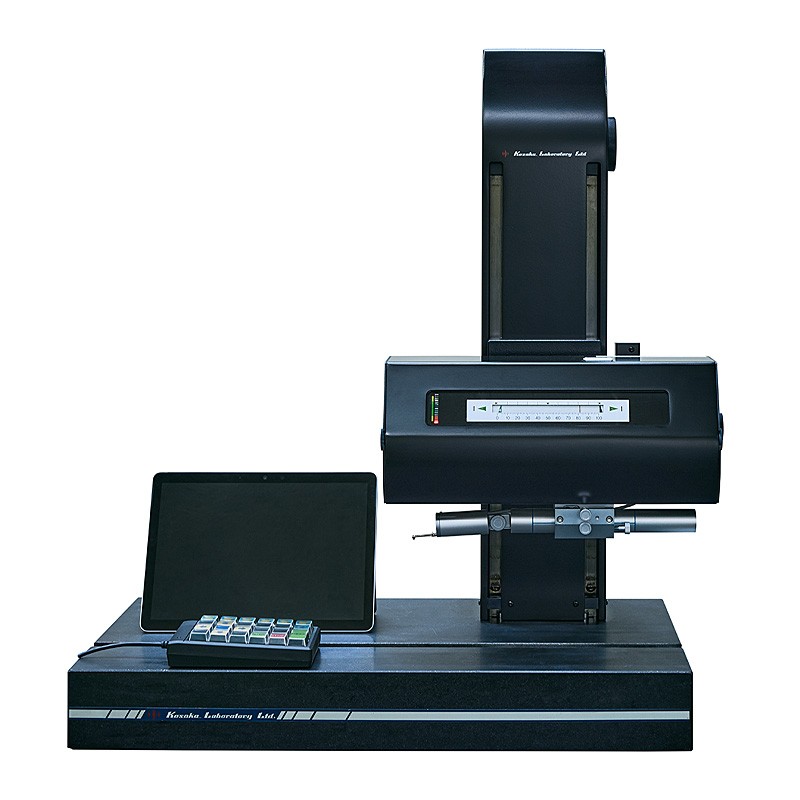

Kosaka Roughness Tester SE500pro

Details

Features:

1. One-push measurement
Total process is completed with just one push on the Pro-Key. OK/NG judgment is displayed in red and blue colors and it can be understood visually and intuitively. Reduce effort!

2. World’s 1st Pro-Key operation
Enhance to free operation with the Pro-Key. Free layout of each command is possible. Multiple Pro-Keys can be used separately, so each operator can create original Pro-Key. To interchange Pro-Key, simply insert own Pro-Key into the USB hub. By using individual Pro-Key, it also helps prevent viruses, new infectious diseases, and hygiene.

3. Industry 1st! Commnicate anywhere with tablet PC
Best-in-class analytical capabilities. Bringing Tablet PC, enables real-time analysis and discussion. Connecting the communication between QA and production line.

4. Auto measuring result save
When auto saving, OK/NG measurement result is recorded in the file name. No need to open the file each time to check if result is OK or NG. Prevents results from being tampered with!

5. Profiler version
Transform your SE500pro into a step height profiler. Can also measure warpage, straightness, and waviness. Ideal for the semiconductor, FPD, LED, and material science!

6. Free arrange the QA room
Check Port makes effective use of vertical space. Creates additional work space in a limited work area. Achieves space saving!

Specification:

Model	SE500pro	SE500pro-58D	SE500pro-18D
Measurement Parameters	JIS B06011982 Ra, Rmax, Rz JIS B06011994 Ra, Ry, Rz, S, Sm, tp JIS B0610-1987 Wca, Wcm, Wem, Wea JIS B0601-2013 Pp, Pv, Pz, Pc, Pt, Pa, Pq, Psk, Pku, PPc, PSm, PΔq, (JIS B0601-2001) Pmr(c), Pδc, Pmr, Rp, Rv, Rz, Rc, Rt, Ra, Rq, Rsk, Rku, (ISO 42871997) RPc, RSm, RΔq, Rmr(c), Rδc, Rmr, Wp, Wv, Wz, Wc, Wt, Wa, Wq, Wsk, Wku, WPc, WSm, WΔq, Wmr(c), Wδc, Wmr JIS B0631-2000 AR, R, Rx, Rke, Rpke, Rvke JIS B0671-1, -2, -3, -2002 Rk, Rpk, Rvk, Mr1, Mr2, Rpq, Rvq, Rmq (ISO 13565-1, -2, -3, -1996) ISO 12085, 1996 AR, R, Rx, Rke, Rpke, Rvke ASME B46.1・11995 Ra, Rq, Rt, Rp, Rv, Sm, Pc, Rsk, Rku, tp, HSC,Δq,Δa, Rmax, Rz, Rpm, λa, λq, Wt, Wa, Wq, Wp, Wv, Wmr(c)
Vertical Movement	70 mm	250 mm Motorized	250 mm Motorized
Measuring Range	Vertical: 800μm, Horizontal: 55 mm, Vertical Resolution: 0.04 nm		Vertical: 600μm, Horizontal: 100 mm, Vertical Resolution: 0.04 nm
Measuring Speed	0.05 - 2.0 mm/sec
Traverse Speed	0.05 - 2.0 mm/sec		0.05 - 10 mm/sec
Straightness	0.3 μm／ 55 mm		0.2 μm／100 mm
Pick-up	Diamond Tip: R2μm, 60°, Measuring force 0.75mN, Interchangeable
