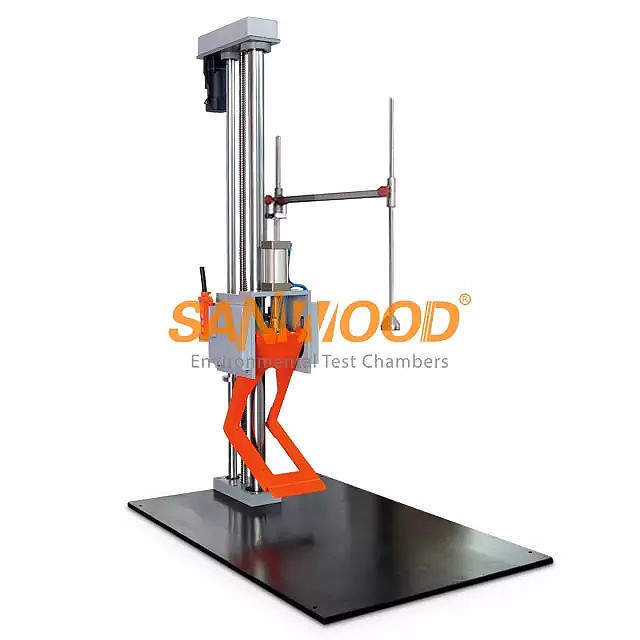

SANWOOD Drop Test Machine
Drop tester is used to measure the dropping impact incidence when the package in using、transportation and decorating. Labtone "1G+" project strictly ensure the accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
1: Drop Test chamber Unique swing arm mechanism design, the acceleration of swing arm detachment is more than 3G.
2: With double column guide, hydraulic buffer absorb the force of the swing arm, the movement is steady, reliable and low noise.
3: Self locking screw lifting mechanism to prevent accidental glide of the drop mechanism.
4: Pneumatic automatic chain, preventing swing arm abnormal glide.
5: Extensible support bracket and baseboard.
Drop Height (mm)
Payload Capacity (kg)
Package Size (mm)
Free Fall Drop
Machine Size (mm)
480 550 Power / Air Supply
200VAC 50Hz, Compressed Air 0.5-0.7MPa
ISO2248-72(E), GB/T4857.5, JISZ0202-87, IEC68-2-27
